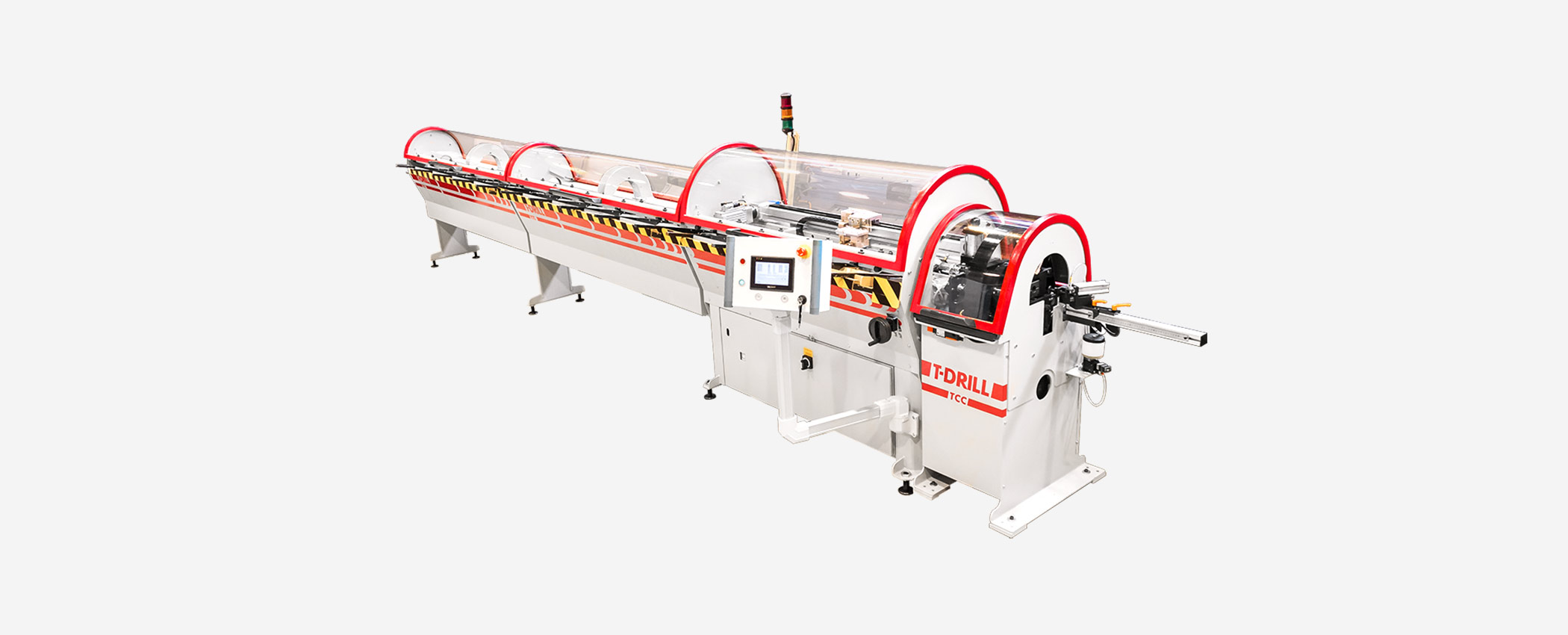

T-Drill TCC-50 Rohrtrennmaschine mit Stangenlader
TCC-50 RL is practical solution if there is a need to cut tube diameters over 25 mm.
The automatic Rackloader is used when the raw material is coming in straight lengths. There are two lengths of rackloaders, for tube lengths max. 4000 mm and max. 6000 mm. The rackloader is integrated into the machine closely. Thus the total length of system has been kept as short as possible.
In cutting of straight tubes TCC-50 offers a remarkable advantage: the minimizing of rest pieces. This means that TCC-50 is able to change the cutting length automatically: it can be programmed to cut e.g. 6000 mm long straight tube so that the rest piece will be as short as possible. In practice we have noticed that three cutting lenghts is a reasonable amount in minimizing the length of rest pieces.
It is natural to think that if the TCC-50 is able to cut different lengths, these lenghts should be able to be sorted automatically so that the operator need not do it. Therefore TCC-50 is normally provided with an automatic sorting table. Thus all the three different cut lengths are assorted to a box of their own and the waste piece to its own. There are available different sorting tables suitable for maximum cut lengths from 2000 mm to 6000 mm.
Rohrdurchmesser: 6 – 45 mm
Material: Aluminium, Kupfer, Edelstahl, Stahl
[/tm_pb_text][/tm_pb_column][tm_pb_column type=“1_2″][tm_pb_text admin_label=“Text“ text_orientation=“left“ use_border_color=“off“ border_color=“#ffffff“ border_style=“solid“]
[/tm_pb_text][/tm_pb_column][/tm_pb_row][/tm_pb_section][tm_pb_section admin_label=“Section“ fullwidth=“off“ specialty=“off“ transparent_background=“off“ allow_player_pause=“off“ inner_shadow=“off“ parallax=“off“ parallax_method=“off“ custom_padding=“80px||80px|“ make_fullwidth=“off“ use_custom_width=“off“ width_unit=“on“ make_equal=“off“ use_custom_gutter=“off“ background_color=“#ededed“ module_id=“datenblatt“][tm_pb_row admin_label=“Row“ make_fullwidth=“off“ use_custom_width=“off“ use_grid_padding=“on“ width_unit=“on“ custom_padding=“||40px|“ padding_mobile=“off“ allow_player_pause=“off“ parallax=“off“ parallax_method=“off“ make_equal=“off“ parallax_1=“off“ parallax_method_1=“off“ vertical_alligment_1=“start“ responsive_laptop_1=“inherit“ responsive_tablet_1=“inherit“ responsive_phone_1=“inherit“ order_laptop_1=“1″ order_tablet_1=“1″ order_phone_1=“1″ column_padding_mobile=“on“][tm_pb_column type=“4_4″][tm_pb_text admin_label=“Text“ text_orientation=“left“ use_border_color=“off“ border_color=“#ffffff“ border_style=“solid“]
Datenblätter und weiterführende Informationen
[/tm_pb_text][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=“Row“ make_fullwidth=“off“ use_custom_width=“off“ use_grid_padding=“on“ width_unit=“on“ padding_mobile=“off“ allow_player_pause=“off“ parallax=“off“ parallax_method=“off“ make_equal=“off“ parallax_1=“off“ parallax_method_1=“off“ vertical_alligment_1=“start“ responsive_laptop_1=“inherit“ responsive_tablet_1=“inherit“ responsive_phone_1=“inherit“ order_laptop_1=“1″ order_tablet_1=“1″ order_phone_1=“1″ parallax_2=“off“ parallax_method_2=“off“ vertical_alligment_2=“start“ responsive_laptop_2=“inherit“ responsive_tablet_2=“inherit“ responsive_phone_2=“inherit“ order_laptop_2=“2″ order_tablet_2=“2″ order_phone_2=“2″ column_padding_mobile=“on“ module_id=“datenblatt“][tm_pb_column type=“1_2″][tm_pb_text admin_label=“Text“ text_orientation=“left“ use_border_color=“off“ border_color=“#ffffff“ border_style=“solid“]
| TCC-50 RL | Wert |
|---|---|
| Main supply | 200-240 V / 50 Hz /60 Hz, 3-Phasen 400-480 V / 50 Hz /60 Hz, 3-Phasen |
| Cutting range O.D. | 8–50,8 mm |
| Wandstärke | 0,4–2,5 mm (je nach Material) |
| Material to be cut | Aluminium, Kupfer, Stahl |
| Wiederholgenauigkeit | +/- 0.1 mm/Schnitt |
| Min. Abschnittlänge | 3 x O.D. |
| Typische Produktionsrate | 800–1300 Stk./h, je nach Abschnittlänge, Material und erforderlicher Schnittqualität |
| Luftdruck | 6 bar |
| Stromversorgung | 3,3 kW |
| Sicherungen | Min. 3 x 16A Max. 3 x 63 A |
| Farbe | RAL 7035/3003 |
